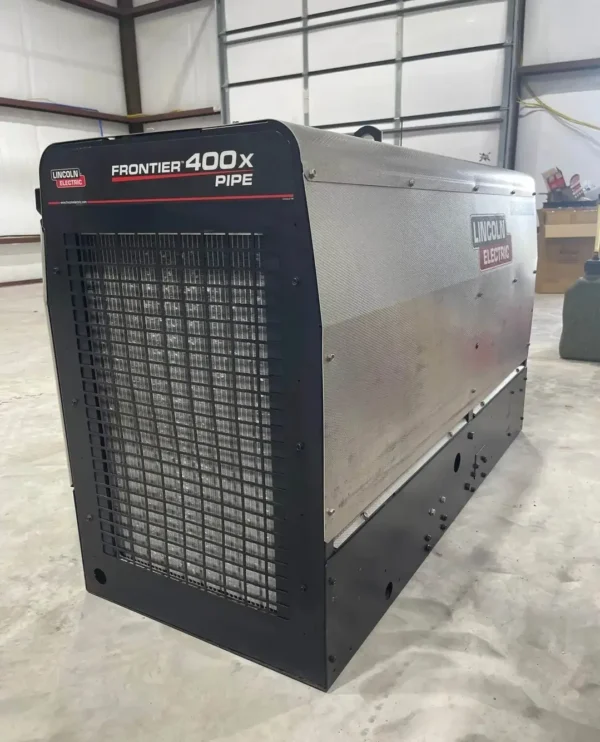

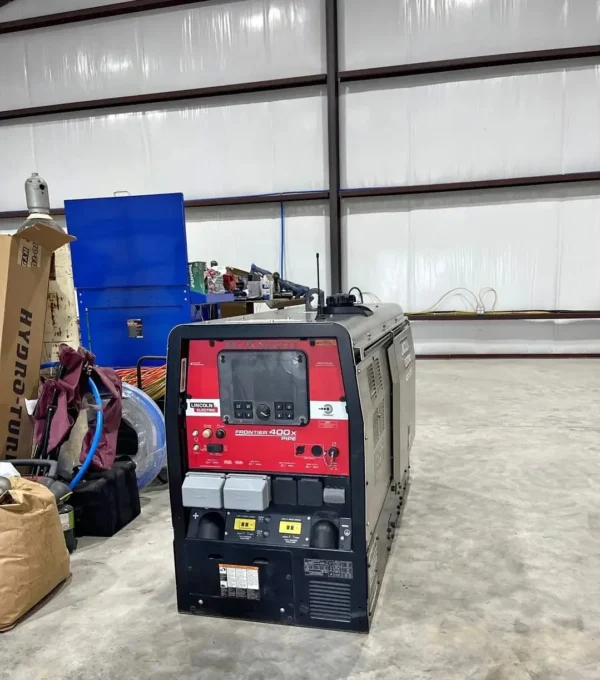

Used Lincoln Frontier 400X Pipe Engine Driven Welder (Kubota) – 1177.7 Hours
Advanced Engine-Driven Welder/Generator for Pipeline, Construction, and Heavy-Duty Field Welding
The Used Lincoln Frontier 400X Pipe Engine Driven Welder is an advanced engine-driven welder/generator offering best-in-class arc performance and the latest welding innovation for maximum versatility on the jobsite. This unit has only 1177.7 hours, making it an excellent low-hour option for professionals who want dependable performance and long service life without the cost of buying new.
At Welder Vault, we specialize in quality used welding machines that deliver proven performance and exceptional value. The Frontier 400X Pipe is a standout choice for pipeline contractors, fabrication shops, industrial maintenance crews, and field welders who need dependable performance in tough environments. Its optimized CC and CV modes, along with specialized modes for mechanized equipment and advanced GMAW applications including STT and pulse welding, make it one of the most versatile machines in its class.
What truly sets the Frontier 400X Pipe apart is its dedicated Pipe mode with DigFX technology, engineered to produce the classic DC-style arc needed for downhill pipe welding applications. This specialized mode gives welders the smooth, controlled arc characteristics required for pipe work, making it an ideal solution for professionals focused on pipeline construction and repair.
Powered by a 24.8 hp naturally aspirated Kubota diesel engine, the Frontier 400X Pipe delivers up to 400 amps of welding current (IEC rated at 325 amps) and provides up to 11 kW of continuous three-phase auxiliary power. That means you can run industrial tools such as plasma cutters, pumps, or inverter welders while maintaining reliable welding performance throughout the day.
The machine also features an industry-first, next-gen 7-inch digital display with enhanced operator-focused controls. Welders can save and recall parameter memories, receive maintenance reminders, and enable optional PIN user authorization for added security and convenience. CrossLinc technology allows communication through a standard weld cable, enabling voltage or current control at the arc without a control cable. Built-in True Voltage Technology compensates for voltage drop to help improve weld quality, productivity, and site safety while reducing jobsite clutter.
For extended runtime, the Frontier 400X Pipe includes a 20 US gallon fuel tank and integrated Auto-Stop/Start technology designed to reduce engine idling, save on fuel costs, avoid excessive wear on the engine, and extend time between maintenance intervals. Built tough for harsh conditions and compliant with EPA Tier 4 Final standards, this machine is engineered for serious industrial use and long-lasting reliability.
Key Features
- Low-Hour Machine – This unit has only 1177.7 hours, offering excellent value and remaining service life for demanding welding applications.
- Full Job-Site Versatility – Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Features optimized CC and CV modes, specialized modes to support mechanized and pulse welding, and a dedicated Pipe mode with DigFX technology to produce the iconic, smooth DC-style arc for downhill pipe welding.
- All Day Auxiliary Power – Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
- Next-Gen Display – Bright, durable 7 in. digital user interface for unmatched machine control. Save and recall memories, receive maintenance reminders, and enable PIN authorization.
- CrossLinc Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter.
- Run Longer and More Efficient – Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance.
- Field-Proven Diesel Engine – Powered by a 24.8 hp, naturally aspirated Kubota diesel engine to provide extremely smooth and quiet operation while meeting EPA Tier 4 Final compliance.
- Trusted Reliability – Engineered tough to withstand harsh conditions and built for dependable performance in demanding environments.
- Multi-Process Capability – Supports Stick, TIG, MIG, Pulsed MIG, Flux-Cored, Orbital MIG, STT, and carbon arc gouging applications.
- True Voltage Technology – Compensates for voltage drop to further improve operations and help maintain consistent weld quality.
- Specialized Pipe Mode – Produces the classic DC-style arc for downhill pipe welding applications.
Applications
- Pipeline construction and repair
- Cross-country pipeline construction and field erection
- Construction and mining
- Railroad maintenance
- Heavy fabrication
- Offshore oil and gas
- Pipeline and offshore power generation
- Shipbuilding
- Structural fabrication and structural welding
- Industrial maintenance and repair
- Carbon arc gouging
- Mechanized and advanced GMAW applications
Specifications
Product Weights & Dimensions
- Dimensions (H x W x D): 35.9 in x 25.3 in x 60 in (913 mm x 643 mm x 1524 mm)
- Net Weight: 1035 lbs (469 kg)
General Specifications
- Processes: Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), STT, Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G), Orbital MIG
- Open Circuit Voltage: 71 Peak OCV at 1800 RPM
- IEC Rating: 325A / 33V / 100% @ 104°F (40°C)
- Output Range by Mode:
- Stick/Pipe (SMAW): 30 – 400 Amps
- CV-Wire (GMAW, FCAW-S, FCAW-G): 10 – 45 Volts DC
- TIG (GTAW): 5 – 400 Amps
- Arc Gouging (CAC-A): 60 – 400 Amps
- Rated Gouging Carbon Diameter: 5/16″ (8.0 mm)
- Communication Technology: CrossLinc
Auxiliary Power
- Single Phase Auxiliary Output: 10,000 Watts Continuous / 11,500 Watts Peak, 120/240V
- Three Phase Auxiliary Output: 11,000 Watts Continuous / 12,500 Watts Peak, 240V
- Auxiliary Output Frequency: 60 Hz
- Receptacle Types: NEMA 5-20R, NEMA 14-50R, NEMA 15-50R
Engine
- Engine Brand & Model: Kubota D1503-M
- Engine Description: 3 Cylinder Naturally Aspirated Water Cooled Diesel Engine
- Engine Horsepower: 24.8 hp (18.5 kW)
- Engine Block Size & Displacement: 91.4 cu. in. (1.5 L)
- Bore x Stroke: 3.27 in x 3.64 in (83 mm x 92.4 mm)
- Emissions Rating: US EPA Tier 4 Final
- High Idle Operating Speed @ Rated Output: 1800
- Low Idle Operating Speed: 1400
- Sound Rating @23 ft. (7m): 67 dBA at Low Idle / 71 dBA at High Idle
- Fuel Tank Size: 20 US gal. (75.7 L)
- Oil Capacity: 6.4 qts. (6.0 L)
- Coolant Capacity: 1.8 US gal. (6.8 L)
Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Why Choose a Used Lincoln Frontier 400X Pipe?
A used Lincoln Frontier 400X Pipe offers outstanding value for professionals who need premium welding performance without the cost of buying new. With only 1177.7 hours, this machine is a strong low-hour option for buyers looking for dependable field performance and excellent remaining life.
This machine is built for serious field work and delivers the power, control, and versatility needed for pipeline, fabrication, and industrial applications. With its specialized Pipe mode, advanced digital display, CrossLinc technology, Auto-Stop/Start feature, and strong auxiliary output, the Frontier 400X Pipe remains a top choice for welders who need dependable performance in demanding environments. A quality used unit can provide years of productive service while helping you maximize your equipment investment.
Why Buy From Welder Vault?
At Welder Vault, we are committed to supplying dependable used welding equipment from the industry’s most respected manufacturers. Every machine is carefully evaluated to help ensure reliable operation and customer satisfaction.
Our goal is to provide professional welders, contractors, and businesses with high-quality equipment that delivers performance, durability, and value. Whether you’re expanding your fleet or replacing existing equipment, the Lincoln Frontier 400X Pipe Engine Driven Welder (Kubota) is a proven solution for demanding welding applications.
Contact Welder Vault today for current availability and additional information about this machine.
