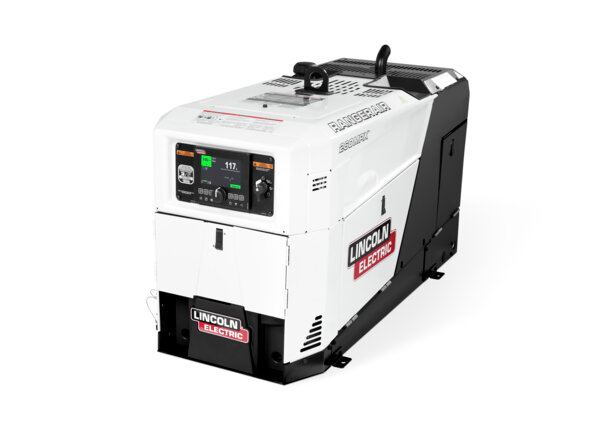

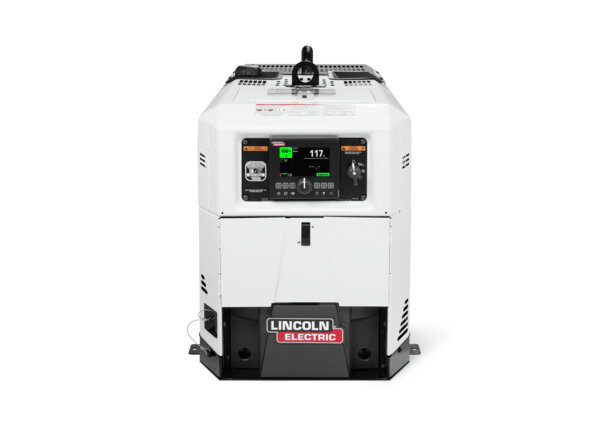

Lincoln Ranger® Air 260MPX™ Multi-Function Engine Drive K5238-1
One Machine. Endless Possibilities.
The Lincoln Ranger Air 260MPX is a game-changing all-in-one solution built for professionals who need dependable welding power, compressed air, auxiliary power, battery support, and portability on demanding jobsites. Whether you’re a mobile welder, contractor, maintenance technician, farmer, or field service professional, this machine is designed to help you work smarter and accomplish more with fewer pieces of equipment.
By combining a multi-process welder, rotary screw air compressor, generator, battery jump assist, and battery charger into one rugged package, the Lincoln Ranger Air 260MPX helps reduce equipment clutter, free up valuable truck space, and improve productivity wherever work takes you.
Versatility That Works as Hard as You Do
Every job comes with different challenges, and that’s exactly why the Lincoln Ranger Air 260MPX was built. Instead of hauling multiple machines to every location, you get five essential functions in one compact and durable unit:
- Multi-Process Welder
- Rotary Screw Air Compressor
- Auxiliary Generator Power
- Battery Jump Assist
- Battery Charger
From repairing heavy equipment and fabricating structural steel to powering tools in remote locations and operating pneumatic equipment, this machine is ready for virtually any task.
Why Professionals Choose the Lincoln Ranger Air 260MPX
✔ Five essential functions in one machine
✔ Multi-process welding capability
✔ Powerful 40 CFM rotary screw air compressor
✔ Up to 225 PSI maximum air system pressure
✔ Reliable Kohler® 26.5 HP gasoline engine
✔ CrossLinc® communication technology compatibility
✔ Compact footprint saves truck and trailer space
✔ Durable IP23-rated construction for outdoor use
✔ Multiple auxiliary power receptacles
✔ Trusted Lincoln Electric reliability
Industry-Leading Performance Across Every Function
The Lincoln Ranger Air 260MPX is engineered to deliver outstanding performance whether you’re welding, powering tools, charging batteries, or running air-powered equipment.
Powerful Rotary Screw Air Compressor
Equipped with a Vanair rotary screw air compressor, this machine delivers:
- 40 CFM at 150 PSI
- 225 PSI maximum system pressure
- Safety relief valve protection
- High-temperature shutdown protection
This built-in compressor eliminates the need for a separate air compressor, helping you save space while maintaining the air power needed for demanding jobs.
Reliable Auxiliary Generator Power
Keep your jobsite running with integrated auxiliary power and multiple receptacle options, including:
- NEMA 5-20R
- NEMA 6-50R
- NEMA 14-50R
Operating at 60 Hz, the generator provides dependable power for grinders, drills, lights, pumps, and other essential equipment.
Exceptional Welding Performance
One of the biggest advantages of the Lincoln Ranger Air 260MPX is its ability to handle multiple welding processes, making it an incredibly versatile engine-driven welding system.
Welding Processes
- Stick (SMAW)
- TIG (GTAW)
- MIG (GMAW)
- Flux-Cored Self-Shielded (FCAW-S)
- Flux-Cored Gas-Shielded (FCAW-G)
Output Ranges
- CC-Stick: 35–260 Amps
- Touch Start TIG: 25–260 Amps
- CV-Wire: 16–27 Volts
IEC Rating
- 231A / 29.2V / 100% Duty Cycle at 104°F (40°C)
This broad welding capability makes it ideal for fabrication, maintenance, repair work, and structural welding applications.
Built for Productivity
The Lincoln Ranger Air 260MPX was designed to help professionals maximize efficiency by combining several critical jobsite tools into one compact machine.
Compact Footprint
With dimensions of:
- Height: 26 in (660 mm)
- Width: 20 in (508 mm)
- Depth: 48 in (1219 mm)
the machine fits comfortably on service trucks and trailers while freeing up valuable storage space for other equipment.
Rugged Construction
Built for demanding environments, it features:
- IP23 ingress protection rating
- Durable industrial-grade construction
- Reliable operation in harsh outdoor conditions
Whether you’re working in construction, agriculture, or industrial maintenance, this machine is built to withstand tough conditions.
Advanced Communication Technology
The machine incorporates:
- J1939 CAN Data Technology
- CrossLinc® Communication Technology
These advanced systems help improve connectivity, simplify setup, and enhance welding performance in field applications.
Engine Performance You Can Depend On
At the heart of the Lincoln Ranger Air 260MPX is a dependable Kohler® ECH749 Electronic Throttle Body Engine, engineered to provide reliable performance day after day.
Engine Specifications
- 2-Cylinder Air-Cooled Gasoline Engine
- 26.5 Horsepower
- Electronic Throttle Body Technology
- 11-Gallon (41.6 L) Fuel Tank
- 1.9 qt (1.8 L) Oil Capacity
This powerful engine delivers the performance needed for welding, power generation, battery support, and air compression applications in the field.
Specifications
| Specification | Details |
|---|---|
| Model | Lincoln Ranger® Air 260MPX™ |
| Machine Type | Multi-Function Engine Drive |
| Welding Processes | Stick (SMAW), TIG (GTAW), MIG (GMAW), FCAW-S, FCAW-G |
| Output Range (Stick) | 35–260 Amps |
| Output Range (Touch Start TIG) | 25–260 Amps |
| Output Range (CV Wire) | 16–27 Volts |
| IEC Rating | 231A / 29.2V / 100% @ 104°F (40°C) |
| Communication Technology | CrossLinc® |
| Data Technology | J1939 CAN |
| Ingress Protection Rating | IP23 |
| Auxiliary Output Frequency | 60 Hz |
| Receptacles | NEMA 5-20R, NEMA 6-50R, NEMA 14-50R |
| Engine | Kohler® ECH749 Electronic Throttle Body |
| Engine Type | 2-Cylinder Air-Cooled Gasoline |
| Horsepower | 26.5 HP |
| Fuel Tank Capacity | 11 gal (41.6 L) |
| Oil Capacity | 1.9 qt (1.8 L) |
| Air Compressor | Vanair Rotary Screw Compressor |
| Compressor Output | 40 CFM @ 150 PSI |
| Maximum Air Pressure | 225 PSI |
| Compressor Protection | Safety Relief Valve, High Temp Shutdown |
| Dimensions (H x W x D) | 26 x 20 x 48 in (660 x 508 x 1219 mm) |
| Net Weight | 565 lbs (256 kg) |
Ideal Applications
The Lincoln Ranger Air 260MPX is an excellent choice for:
- Construction
- Construction & Field Erection
- General Fabrication
- Maintenance & Repair
- Repair Welding
- Structural Fabrication
- Structural Welding
- Mobile Service Operations
- Agricultural Equipment Repair
- Fleet Maintenance
Be Ready for Any Challenge
When versatility and reliability matter, the Lincoln Ranger Air 260MPX delivers. With multi-process welding capabilities, powerful compressed air, auxiliary generator power, battery support functions, and rugged construction, it provides everything professionals need to stay productive in the field.
Whether you’re repairing equipment, fabricating structures, powering tools, or responding to emergency service calls, this machine helps you tackle every project with confidence and efficiency.
Warranty
Lincoln Electric backs the Ranger® Air 260MPX™ with:
- 3-Year Parts and Labor Warranty
- Engine warranty provided separately by the engine manufacturer
Available at Welder Vault
At Welder Vault, we’re proud to offer the Lincoln Ranger Air 260MPX Multi-Function Engine Drive—a complete jobsite solution built for professionals who demand versatility, durability, and dependable performance.
If you’re looking for a machine that combines welding, compressed air, generator power, battery support, and exceptional productivity into one compact package, the Lincoln Ranger Air 260MPX is an investment that delivers value on every jobsite.
