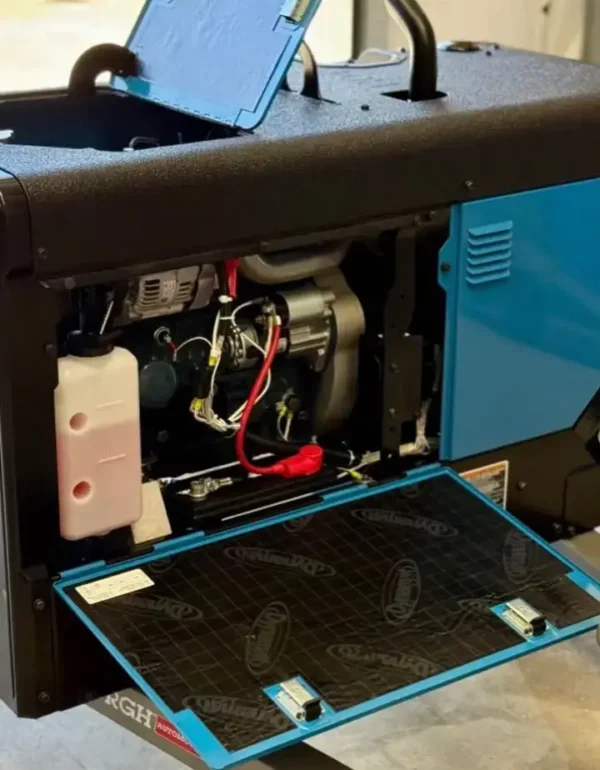

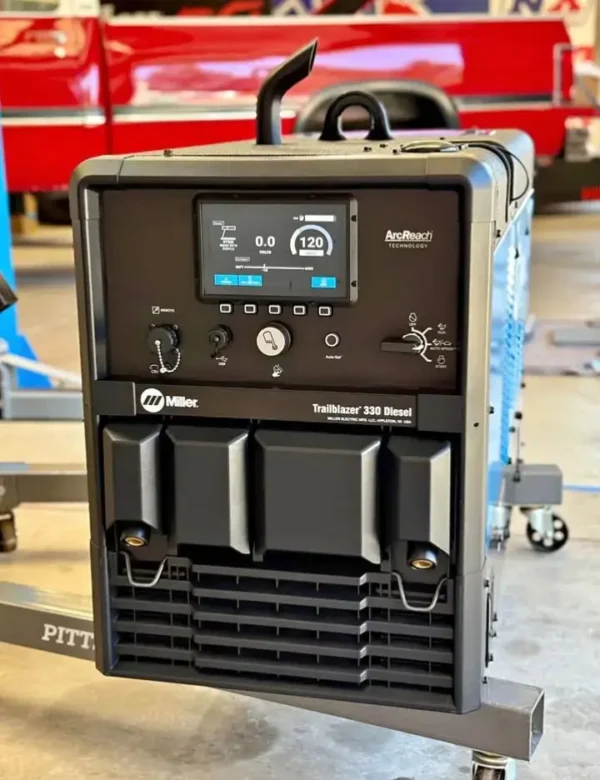

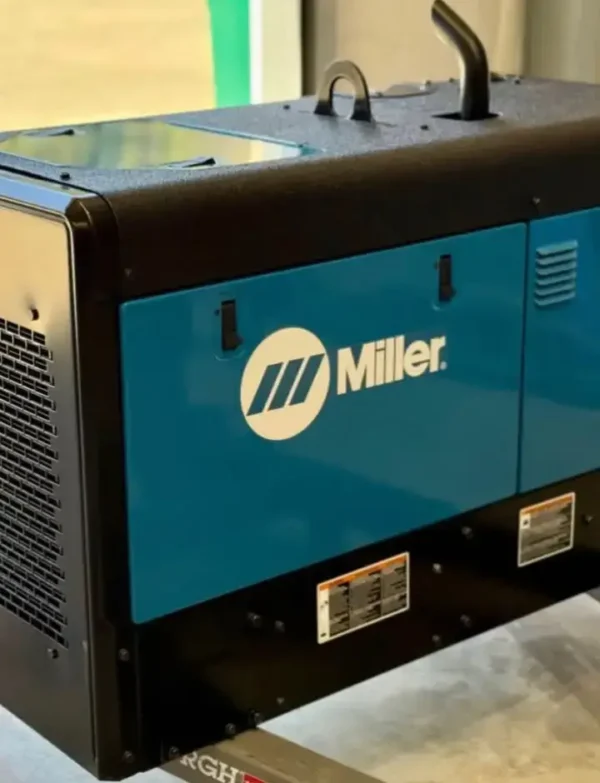

Miller Trailblazer® 330 Diesel Engine Driven Welder (Kubota)
Reliable Kubota Diesel Power for Professional Field Welding
The Miller Trailblazer® 330 Diesel Engine Driven Welder is a robust and reliable welder made for those professionals who require quality performance, auxiliary power, and toughness for their tasks. Equipped with an efficient Kubota® 3-cylinder diesel engine, this professional-class welder suits the needs of construction & fabrication, heavy equipment, railcar fabrication, mobile fabrication & MRO, process pipe, and structural welding.
This welder incorporates many technologies including ArcReach®, Dynamic DIG™, GFCI-protected auxiliary power, QuietPulse™, and Advanced Auto-Speed™ technology which makes this welder productive and efficient at the same time helping to save on fuel and noise. Advanced Auto-Speed™ controls the engine speed in range of 1,800–3,600 rpm according to weld current while a liquid-cooled Kubota engine ensures efficient performance and great fuel economy.
This welder has up to 330 amps DC welding capacity which allows you to do Stick, TIG, MIG, Flux-Cored, and Air Carbon Arc Gouging. Each used welder is thoroughly inspected prior to shipping to assure its proper working condition and long
service life.
Key Features
- Reliable Kubota® liquid-cooled 3-cylinder diesel engine
- 24.8 hp engine output
- Advanced Auto-Speed™ technology varies engine speed from 1,800–3,600 rpm to match weld output
- Up to 330 amps of DC welding output
- ArcReach® technology for greater operator productivity
- Dynamic DIG™ for improved Stick welding performance
- QuietPulse™ reduces operating noise during welding
- GFCI-protected auxiliary power
- 12,000 W peak / 10,500 W continuous single-phase generator power
- Cold weather starting aids with glow plugs
- Lift eye standard; running gear/cart and trailer options available
- Heavy-duty industrial construction
- Electric start for dependable operation
- 11-gallon fuel tank
- Professional applications class
Welding Processes
The Used Miller Trailblazer® 330 Diesel Engine Driven Welder supports multiple welding processes for maximum versatility.
- Stick (SMAW)
- TIG (GTAW)
- MIG (GMAW)
- Flux-Cored (FCAW)
- Air Carbon Arc Gouging (CAC-A)
Whether you’re welding structural steel, repairing heavy equipment, or fabricating stainless steel components, this machine delivers dependable performance in the field. It also supports rated carbon diameter up to 1/4 in (6.4 mm) for gouging applications.
Specifications
| Specification | Details |
|---|---|
| Model | Miller Trailblazer® 330 Diesel |
| Engine Brand | Kubota® |
| Engine Type | 3-Cylinder Diesel |
| Engine Compliance | T4F Series |
| Horsepower | 24.8 hp |
| Fuel Type | Diesel |
| Fuel Tank Size | 11 Gallon |
| Engine Idle Speed | 1800 RPM |
| Advanced Auto-Speed™ | Varies engine speed from 1,800–3,600 rpm to match weld output |
| Max DC Welding Amperage | 330 A |
| Min DC Welding Amperage | 20 A |
| Amperage Range | 20 A – 330 A |
| Current Type | DC |
| Rated Output (CC/DC Stick/TIG) | 330 A at 31 V, 100% duty cycle |
| Rated Output (CV/DC MIG/FCAW) | 330 A at 3.25 V, 100% duty cycle |
| Max Open Circuit Voltage | 107 VDC |
| Rated Carbon Diameter | 1/4 in (6.4 mm) |
| Welding Processes | Stick, TIG, MIG, Flux-Cored, Gouging |
| Technologies | ArcReach®, Dynamic DIG™, GFCI, QuietPulse™, Advanced Auto-Speed™ |
| Single-Phase Generator Peak Power | 12000 W |
| Single-Phase Generator Continuous Power | 10500 W |
| Cooling Method | Liquid-Cooled |
| Sound Rating | 74.7 dB @ idle and 80.2 dB @ max weld |
| Cold Weather Starting Aids | Glow Plugs |
| Compressed Air | No |
| Portability | Lift Eye (Standard), Running Gear / Cart (Optional), Trailer (Optional) |
| Applications Class | Professional |
| Applications | Construction & Fabrication, Heavy Equipment, Railcar, Mobile Fabrication & MRO, Process Pipe, Structural Welding |
| Weldable Metals | Aluminum, Stainless Steel, Steel |
Ideal Industries
The Miller Trailblazer® 330 Diesel is trusted by professionals working in:
- Construction & Fabrication
- Heavy Equipment Repair
- Railcar
- Structural Fabrication
- Pipeline Welding
- Industrial Maintenance
- Oil & Gas
- Agriculture
- Utility Services
- Mechanical Contracting
- Mobile Welding Businesses
- Equipment Repair
Designed for demanding field environments, this machine combines professional welding performance with dependable generator power wherever the job takes you.
Why Choose the Miller Trailblazer® 330 Diesel?
Among the Miller engine drive welders for sale, the Trailblazer 330 Diesel (Kubota) is renowned for incredible ruggedness, long engine life and unmatched fuel economy. The time-tested Kubota diesel engine delivers the consistent performance to withstand tough, daily workloads, and advanced Auto-Speed technology allows it to run at variable speeds to improve fuel efficiency and lower engine wear. It idles at just 1800 RPM and variable working speeds to as high as 3600 RPM.
Featuring a suite of productivity-boosting technologies, including ArcReach, Dynamic DIG™, QuietPulse™ and GFCI-protected auxiliary power outlets-it delivers a superior arc experience on job sites anywhere.
Plus, 107 VDC max open circuit voltage and 330 A CC/DC output and 330 A CV/DC output ensure powerful, reliable results on a variety of professional welding tasks.
Benefits of Buying a Used Miller Trailblazer® 330 Diesel
Purchasing a used Miller engine driven welder allows you to own premium industrial equipment while reducing equipment costs.
Benefits include:
- Significant savings compared to new equipment
- Proven Kubota diesel reliability
- Excellent fuel efficiency
- Professional multi-process welding capability
- Dependable auxiliary generator power
- Rugged industrial construction
- Portable field-ready design with standard lift eye
- Long engine service life
- Excellent resale value
For contractors and professional welders who need dependable diesel-powered performance, the Trailblazer® 330 Diesel remains one of the industry’s most trusted engine-driven welders.
Why Buy From Welder Vault?
At Welder Vault, we specialize in professionally inspected used welding machines from leading manufacturers.
Every machine is carefully evaluated before listing to help ensure dependable performance and customer satisfaction.
When you purchase from us, you receive:
- Professionally inspected used welders
- Competitive pricing
- Fast nationwide shipping
- Honest product descriptions
- Responsive customer support
- Reliable industrial welding equipment
Whether you’re upgrading your fleet or replacing an existing machine, the Miller Trailblazer® 330 Diesel Engine Driven Welder delivers the power, reliability, and efficiency professionals depend on every day
