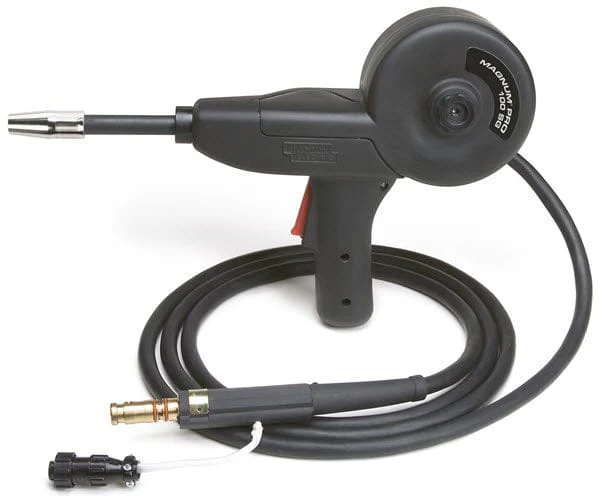

Lincoln® Magnum® PRO 100SG Spool Gun (4-Pin)
Anyone who’s tried running aluminum through a standard MIG gun knows the struggle — the wire’s soft, and by the time it travels through a long cable, you’re dealing with birdnesting, feed hesitation, or worse. The Magnum PRO 100SG gets around that by feeding the wire right at the gun. With only 10 feet of cable between the spool and the tip, the wire barely has a chance to buckle, and you end up with the kind of clean, steady feed that aluminum actually needs.
This is a genuine Lincoln Electric spool gun with a 4-pin plug that connects straight to the back of select small POWER MIG® and SP machines — no bulky adapter, no extra module. It’s rated for 130 amps at 30% duty cycle, which covers most small-to-mid aluminum jobs, and it shows up ready to go: gun, wire, drive roll, contact tips, harness, and a case to keep it all protected.
What you’re getting
- Direct 4-Pin Connection – Plugs straight into the POWER MIG® 216, 210 MP, 180 Dual, 180C, 140C, SP-140T, or SP-180T. No expensive adapter needed.
- 130A at 30% Duty Cycle – Enough output for the aluminum work most shops actually run
- Only 3.5 lbs. (1.6 kg) – Light in the hand, with a balanced grip that doesn’t wear out your arm on longer welds
- 10 ft. (3.0 m) Cable – Short enough to keep the wire path clean, with a connector that hooks up fast
- Genuine Magnum® PRO Consumables – Copper Plus™ tips and long-life diffusers with Anti-Seize™ threads, so you’re not replacing parts every other week
- Real Trigger Feel – Full mechanical travel that you can feel even with a glove on
- Handles .030–.035″ Wire – Same drive roll and liner work for both sizes, across all aluminum alloys
- Comes With a Case – Keeps the gun in one piece when it’s bouncing around in a truck bed or toolbox

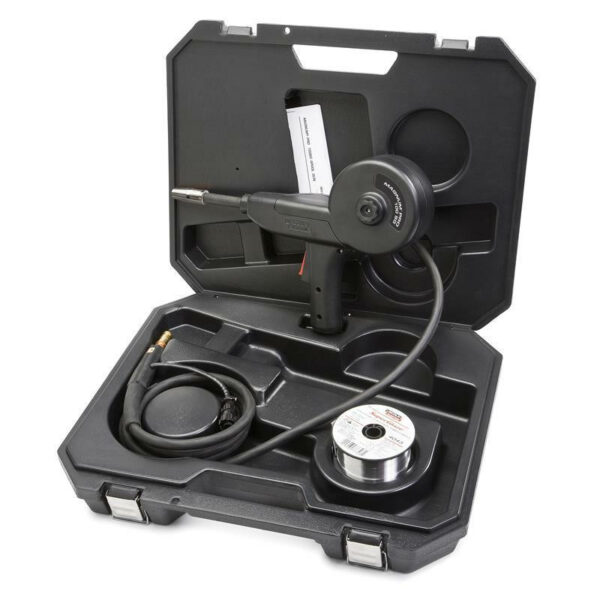

What’s in the Box
- Spool gun with 10 ft. (3.0 m) cable
- 1 lb. spool of .035″ ER4043 aluminum wire (ED030308)
- .030″–.035″ drive roll
- 3 contact tips (KP2744-035T)
- Electrical harness with toggle switch (needs to be installed in the power source)
- Carrying case
Why it’s worth having on hand
If you’re welding aluminum with any regularity, a spool gun stops being a nice-to-have pretty fast. Trying to push soft wire through a standard gun and cable is a losing battle — you’ll spend more time clearing jams than actually welding. The 100SG takes that problem off the table. It’s a straightforward, proven design, and since it ships with everything you need, you can be laying down aluminum welds the same day it shows up.
Compatibility
Works with Lincoln Electric machines that have a 4-pin spool gun receptacle — POWER MIG® 216, 210 MP, 180 Dual, 180C, 140C, and SP-140T/SP-180T. If you’re not sure whether it’ll match your machine, [contact us] before ordering and we’ll help you confirm.
Download Magnum PRO 100SG Spool Gun Spec Sheet
About Welder Vault
We deal in used Miller and Lincoln welding machines, plus the parts and accessories that keep them running — everything gets checked over before it’s listed. If you’re also looking for a machine, take a look through our current inventory of used welders while you’re here.
In stock now — order yours today and get clean, consistent aluminum welds.
